Home /Products/CNC Spring Machine/CNC Spring Coiler Machine 2 Axis 0.06mm-0.8mm Spring CNC Machine

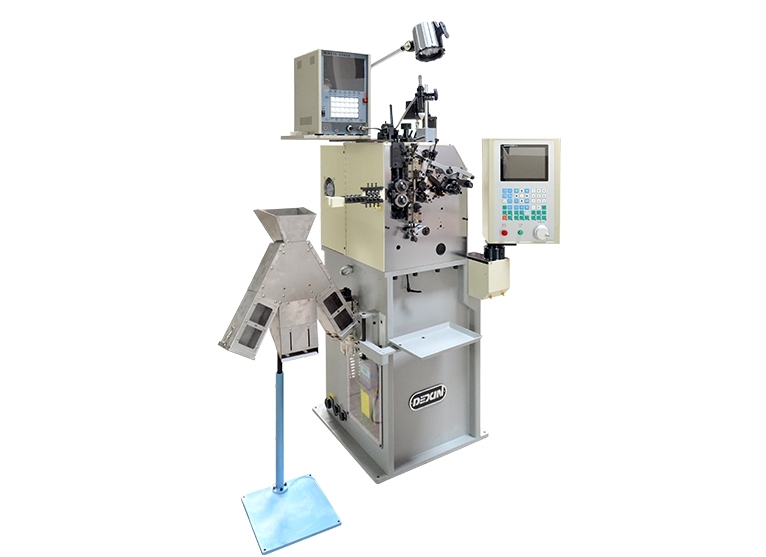

CNC Spring Coiler Machine 2 Axis 0.06mm-0.8mm Spring CNC Machine

1 Set
MOQ
Negotiable
Price
CNC Spring Coiler Machine 2 Axis 0.06mm-0.8mm Spring CNC Machine
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Axie: 2 Axes
Max Feeding Speed: 300m/min
Material Compatibility: Steel, Stainless Steel, Copper, Aluminum
Out Diameter: Max 22mm
Origin: GuangDuan,China
Production Period: 15-25 Days
Highlight:

CNC Spring Coiler Machine

,

Spring Coiler Machine 2 Axis 0.06mm

,

0.8mm Spring CNC Machine
Basic Infomation
Place of Origin: China
Brand Name: Dexin
Certification: CE / IS09001
Model Number: DX-208
Payment & Shipping Terms
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden cas
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 30 Sets per Month
Product Description

 DX-208 CNC HIGH SPEED SPRING COILER With 2 Axis Supports A Processing Wire Diameter Of 0.06 - 0.8mm



Product Description

DX-208 Compression spring machine All motors can operate synchronously or independently.which is easy to operate and accurate in positioning. It is equipped with precision detection and tracking equipment. If there are unqualified products, it can automatically stop. According to the working conditions on the evaluation screen, the external diameter angle of the products can be maintained at any time. The automatic mechanical parts are designed with automatic lubrication and oil supply to ensure the long-term operation of the equipment. The automatic stop design and automatic acceleration function of the wire rack make the production easier and more effective when wireless, broken or entangled. It is applicable to the production of double torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire forming, steel sheet vortex springs, spring springs and various fancy springs, as well as miscellaneous and difficult special-shaped springs.



Description:

1. CNC DX-208 compression spring machine is a two-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axes can act independently of synchronously by build the program.

2. The compression spring machine pitch, outside diameter and cutter are driven by the cam motors. The wire feeding is controlled by an independent motor.

3. English interface, easy operation, accurate positioning, The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.

4. According to the fluorescent screen work, can amend diameter angle of springs anytime. With precision detecting and tracking device, substandard products can automatically stop. Mechanical parts automatic supply lubricating oil design, ensure equipment long time running.

5. Wireless, wire breakage and winding automatically stops design and wire frame automatic acceleration function, make production more easily and effectively.

6. Optional accessories: Torsion device, oil seal device, prize-up device, length gauge.

Features and Functions

1. Adopt Taiwan imported computer control system and imported servo motor.
2. The computer has an English interface, which is easyto operate and accurate in positioning. The computer can control three to eight servo motors, and all motors can run synchronouslyor independently.
3. It is equipped with precision detection and tracking system. If there are unqualified products, it canautomatically stop. 4.According to the working conditions on the fluorescent screen, the outer diameter and angle of the product can be repaired at anytime.
5. The automatic lubrication and oil supply design of mechanical automatic parts ensures the long-term operation of the equipment.
6. When there is no wire, broken wire, tangled wire, machine automatic shutdown design and wire rack automatic acceleration function, make the production easier and more effective.



machine type
spring machine
weight (kg)
400kg
warranty
1 Year
place of origin
China
brand name
Dexin
video outgoing-inspection
Provided
machinery test report
Provided
core components
motor
key selling points
Easy to Operate
Color
Customized
Wire diameter
0.06-0.8mm
Max.spring diameter
22mm
wire length
0.01-9999.99
speed
300m/min
Arbor Back Aad Forth Servo Motor
Chinese/English
Power AC
3P-380V 50/60HZ
Weight
400kg
Tag:

CNC spring making machine

CNC spring coiling machine

CNC torsion spring machine
